Redis cache expire

Redis cache expire expires a given key (or all keys) for a specified duration. During this period of chaos, you can't access the keys associated with the cache.

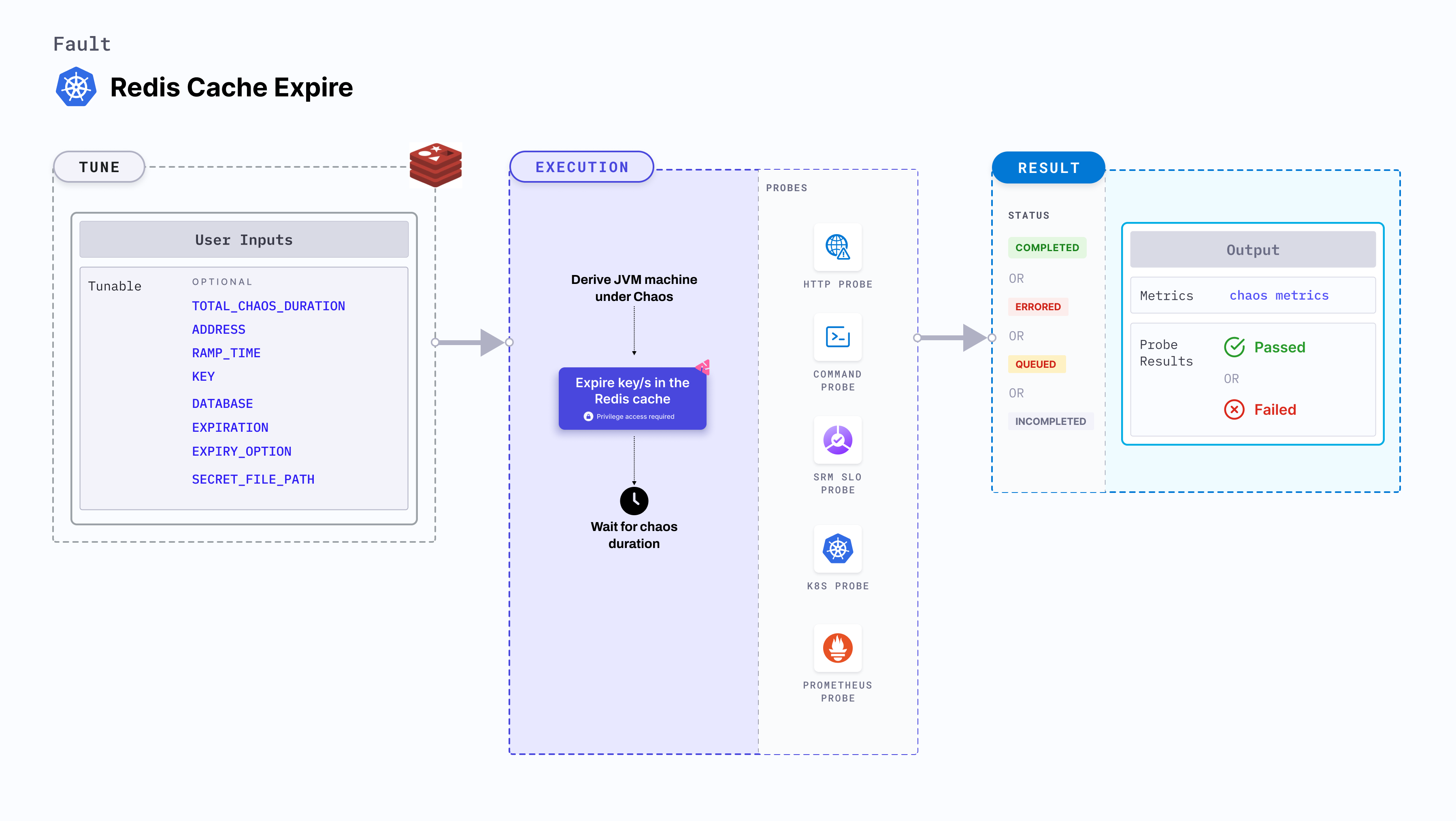

Pod Redis cache expire

Use cases​

Redis cache expire determines the resilience of Redis-dependant applications against frequent cache expiry.

Permissions required​

Below is a sample Kubernetes role that defines the permissions required to execute the fault.

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  namespace: hce
  name: redis-cache-expire
spec:
  definition:
    scope: Namespaced
permissions:
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["create", "delete", "get", "list", "patch", "deletecollection", "update"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "get", "list", "patch", "update"]
  - apiGroups: [""]
    resources: ["pods/log"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["deployments, statefulsets"]
    verbs: ["get", "list"]
  - apiGroups: ["batch"]
    resources: ["jobs"]
    verbs: ["create", "delete", "get", "list", "deletecollection"]

Redis authentication​

note

If your Redis server doesn't require authentication, you can directly provide the ADDRESS tunable, that refers to the Redis server address. Refer here.

If your application requires a secret or authentication, provide the ADDRESS, PASSWORD and the TLS authentication certificate. Create a Kubernetes secret (say redis-secret) in the namespace where the fault executes. A sample is shown below.

apiVersion: v1
kind: Secret
metadata:
  name: redis-secret  # Name of the Secret
type: Opaque       # Default Secret type
stringData:
  redis-secret.yaml: |-
    address: 34.136.111.6:6379
    password: mypass
    tlsCertFile: <cert>

After creating the secret, mount the secret into the experiment, and reference the mounted file path using the SECRET_FILE_PATH environment variable in the experiment manifest. A sample is shown below.

apiVersion: litmuschaos.io/v1alpha1
kind: K8sFault
metadata:
  name: redis-cache-penetration
spec:
  definition:
    chaos:
      env:
        ...  # other env
        ...  # other env
        - name: SECRET_FILE_PATH
          value: "/tmp/redis-secret.yaml"
      components:
        secrets:   # Kubernetes secret mounted
          - name: redis-secret
            mountPath: /tmp/

Optional tunables​

Tunable Description Notes
TOTAL_CHAOS_DURATION Duration through which chaos is injected into the target resource. Should be provided in [numeric-hours]h[numeric-minutes]m[numeric-seconds]s format. Default: 30s. Examples: 1m25s, 1h3m2s, 1h3s. For more information, go to duration.
RAMP_TIME Period to wait before and after injecting chaos. Should be provided in [numeric-hours]h[numeric-minutes]m[numeric-seconds]s format. Default: 0s. Examples: 1m25s, 1h3m2s, 1h3s. For more information, go to ramp time.
ADDRESS The address of the Redis server. If your Redis server doesn't require authentication, directly provide the address.
KEYS Comma-separated list of keys that will be expired. For empty value, all the keys are expired.
DATABASE Redis database where the key exists. Default: 0.
EXPIRATION The duration after which the key expires. Default: 0.
EXPIRY_OPTION The options to expire a Redis key. Refer here for more information. Supports one of: NX, XX, GT and LT.
SECRET_FILE_PATH Path to the file that contains the secret. If a password or certificate is required alongside the address, use the secret file approach.

Parameters​

The following YAML snippet illustrates the use of these tunables:

apiVersion: litmuschaos.io/v1alpha1
kind: KubernetesChaosExperiment
metadata:
  name: redis-cache-expire
  namespace: hce
spec:
  tasks:
     - definition:
        chaos:
          env:
            - name: TOTAL_CHAOS_DURATION
              value: "60" # in seconds
            - name: RAMP_TIME
              value: ""
            - name: ADDRESS
              value: ""
            - name: KEYS
              value: ""
            - name: DATABASE
              value: "0"
            - name: EXPIRATION
              value: ""
            - name: EXPIRY_OPTION
              value: ""
            - name: SECRET_FILE_PATH  # optional- required only for authentication
              value: /tmp/redis-secret.yaml
