Manage Catalog UI

This guide walks you through managing your Catalog Entity UI.

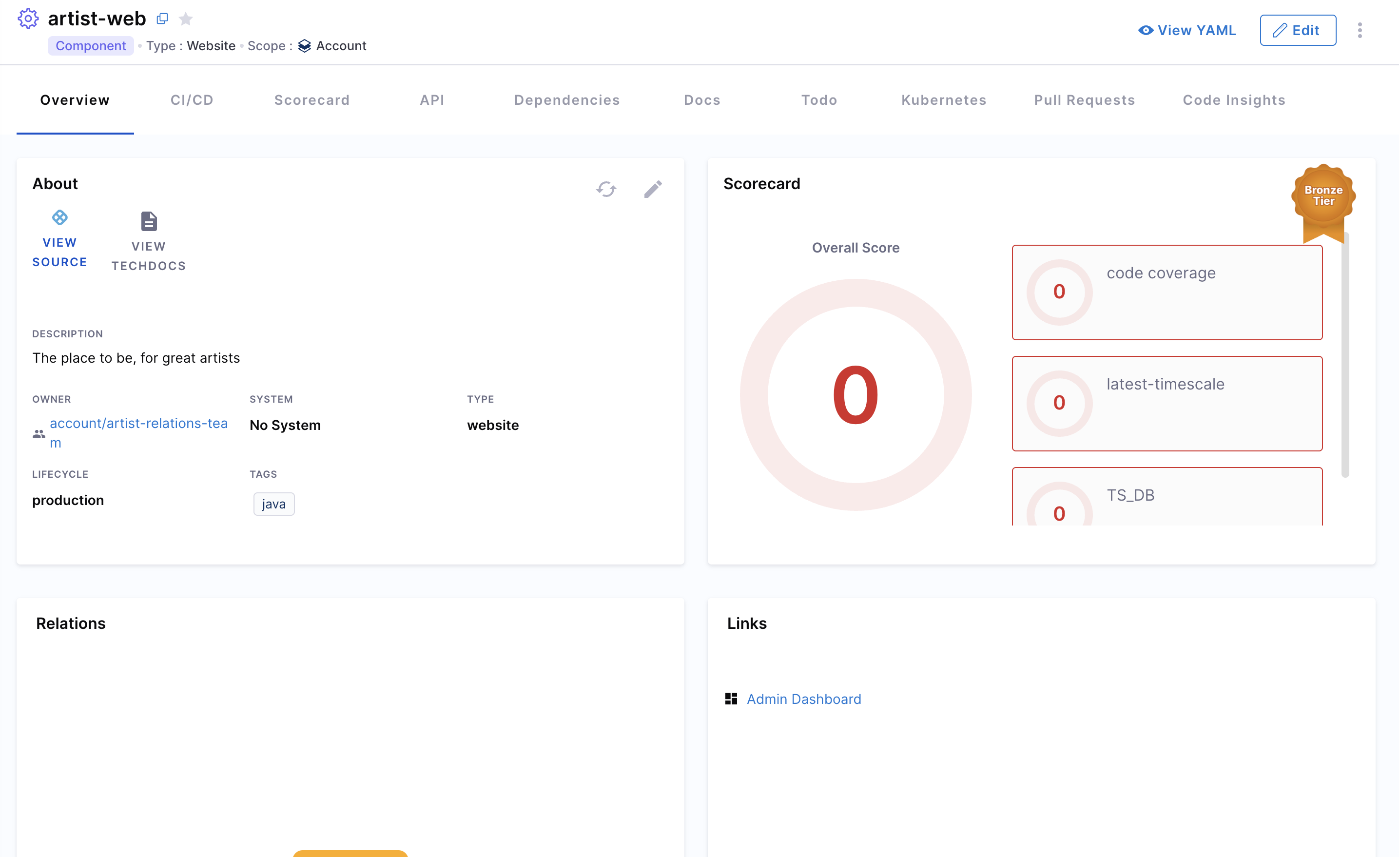

Whenever you register an entity in your software catalog, you can view all its details from the Catalog Entity page in your Harness IDP UI. Every section on the entity page is uniquely designed to present the most relevant information for the specific type of entity you're viewing.

Here’s how to access the catalog entity details page:

1. In your Harness IDP, navigate to Catalog.
2. Select the entity you want to view. You’ll be redirected to the entity details page.

Let’s dive deeper into managing and creating the Catalog Entity UI.

Understanding Catalog Entity UI

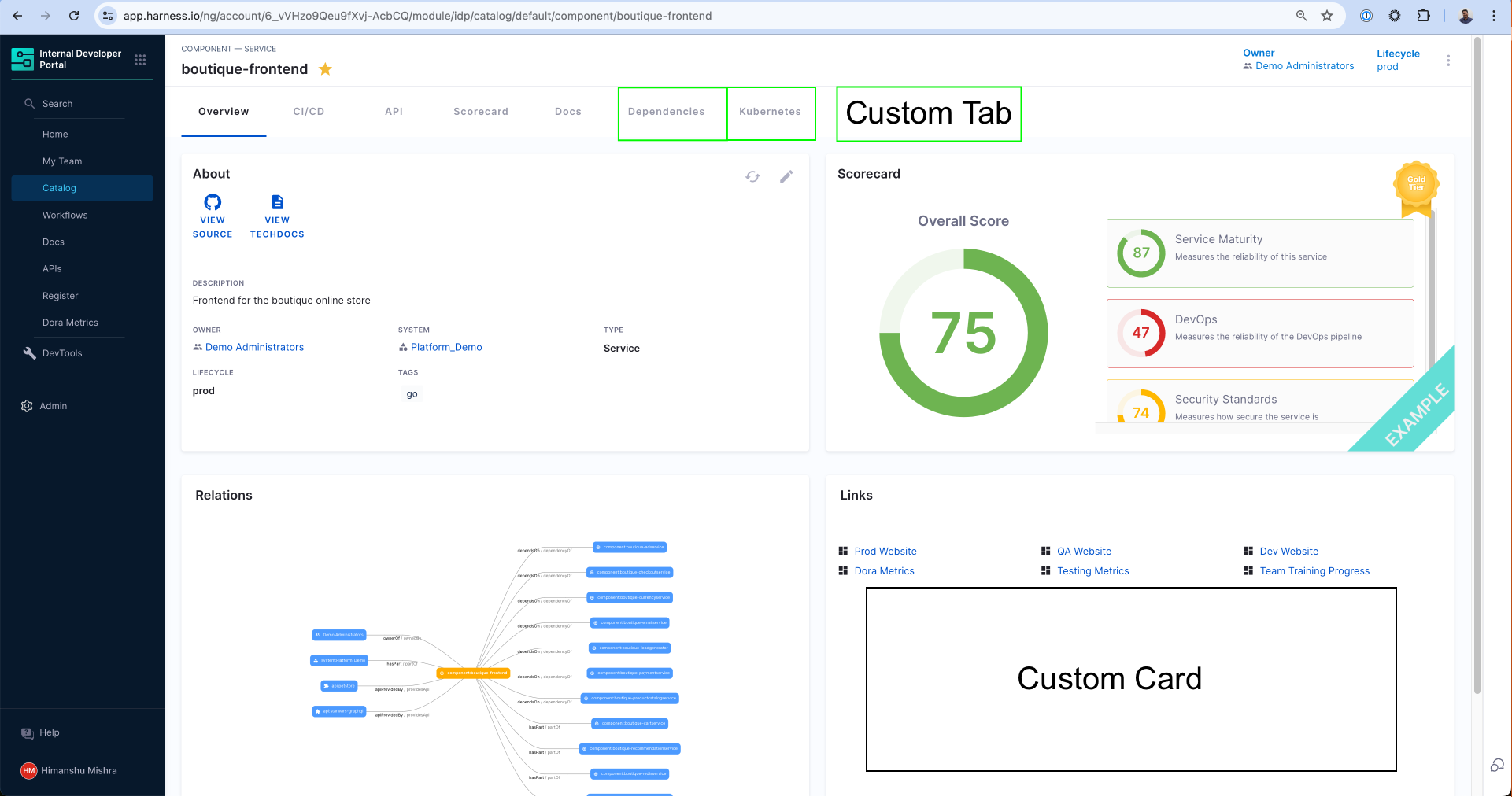

The Catalog Entity Details Page is divided into multiple tabs, each showing different components, cards, and views relevant to that entity.

• Each tab represents a specific section.
• You can customize and edit tabs by modifying the entity layout.
• All views inside a tab are powered by out-of-the-box components like the "About Card," "Scorecard Card," and the Plugins configured for your instance.

When you enable a plugin (or create a custom one), you can choose where the plugin’s components appear by modifying the Layout YAML of the catalog entity.

• When a plugin is enabled, the default layouts are auto-updated.
• You can always make changes manually by checking the exported UI components from that plugin (documented under each plugin's section).

Managing Catalog Entity UI

You can manage and edit Catalog Entity UI layouts directly using the Layout Editor.

• Each Catalog Layout is uniquely designed for a specific Kind and Type of application.
• Learn more about Kinds in the Catalog YAML documentation and understand the System Model for different use-cases.

For example:

• A typical microservice will have kind: Component and spec.type: service.

Note: Entity kinds (such as Component, API, Resource) are fixed. However, you can create any arbitrary types under them (e.g., spec.type: micro-frontend).

Using the Layout Editor

Accessing the Layout Editor

Interactive guide

Step-by-step

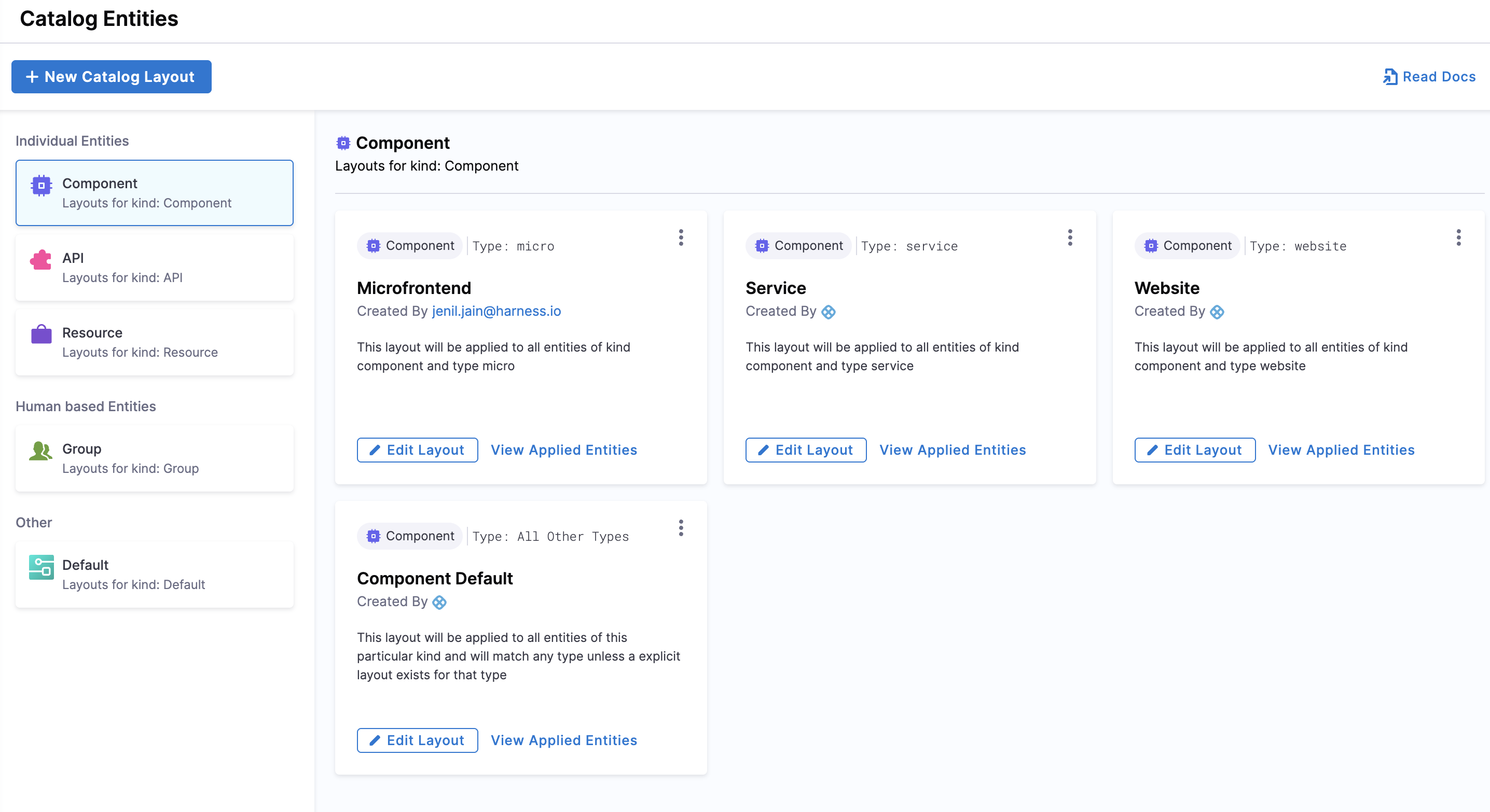

1. In Harness IDP, go to Configure > Layout.
2. Select Catalog Entities.
3. Choose the Entity Kind you want to modify.
4. Layouts are organized by:
   • Kind (e.g., Component)
   • Type (e.g., service, website)
   • A default layout acts as a fallback if a specific type layout isn’t defined.

Creating a New Layout

Interactive guide

Step-by-step

1. Duplicate an existing layout or click New Catalog Layout.
2. Select the Entity Kind and Entity Type this layout will apply to.
3. Click Continue to create the new layout.
4. Start editing the Layout YAML to configure it.

Editing an Existing Layout

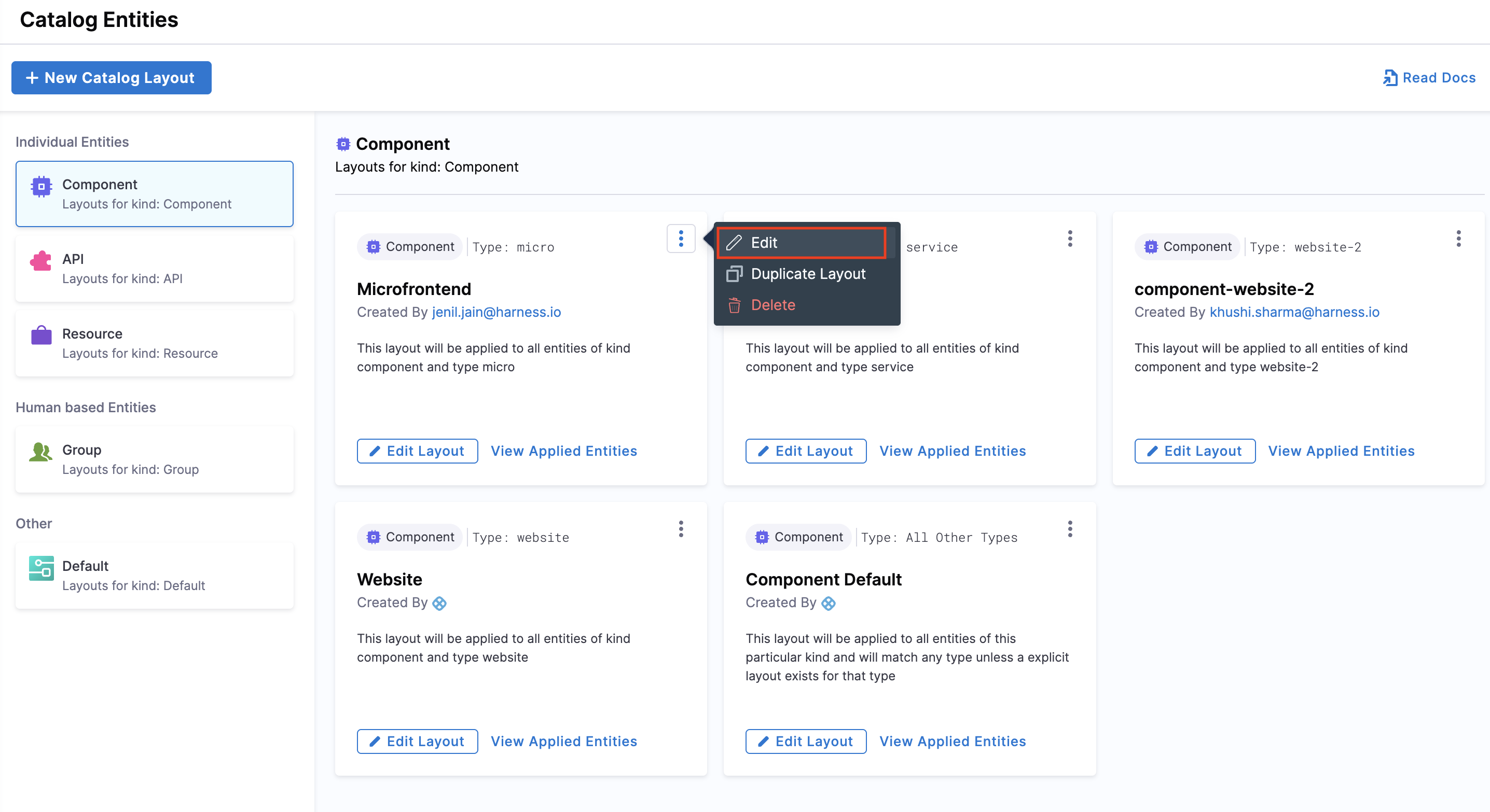

1. In the Layout Editor, select the relevant Entity Kind and Entity Type.
2. Click Edit Layout and modify the YAML.

info

View Applied Entities:
You can see which entities a specific layout applies to by clicking View Applied Entities.

---

Understanding Layout YAML

Entity Page Layouts are defined in a hierarchical structure, starting with the page key, which represents the entity page. Each page consists of tabs, an array that controls the rendered tabs for the entity page.

Key	Description
page	Represents the entity page configuration.
tabs	Defines the tabs shown on the entity page.
contents	Specifies components rendered inside each tab.
component	Defines an individual component.
specs	Contains additional configurations for the component.
props	Properties for the component.
gridProps	Grid settings for arranging components.
cases	(Specific to EntitySwitch) Conditional rendering based on logic.

---

Example: Entity Layout YAML

page:
  name: EntityLayout
  tabs:
    - name: Overview
      path: /
      title: Overview
      contents:
        - component: EntityOrphanWarning
        - component: EntityRelationWarning
        - component: EntityProcessingErrorsPanel
        - component: EntityAboutCard
          specs:
            props:
              variant: gridItem
            gridProps:
              md: 6
        ...
    - name: ci-cd
      path: /ci-cd
      title: CI/CD
      contents:
        ...
    - name: Deps
      path: /dependencies
      title: Dependencies
      contents:
        ...
    - name: TechDocs
      path: /docs
      title: Docs
      contents:
        ...

---

Advanced Use Cases

Adding Links

You can also add a list of external hyperlinks related to the entity on the catalog entity's UI page. Links can provide additional contextual information that may exist outside of Harness itself, such as an admin dashboard or an external CMS page.

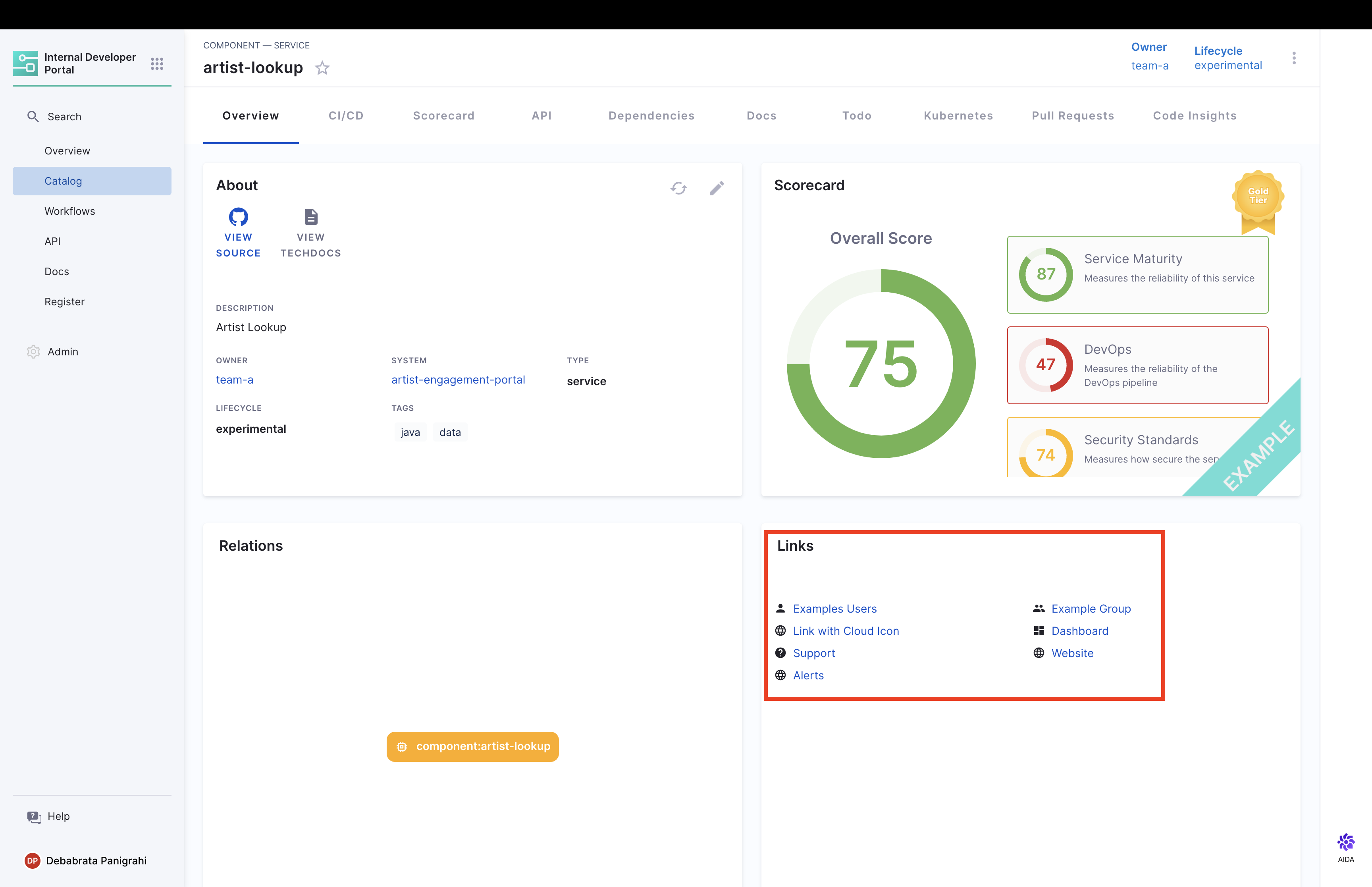

Here’s how "Links" show up in your Catalog entity details page. The Links Card serves as a navigational tool, and these links can point to anything. Here are some examples:

• User and Group Management
• Infrastructure and Cloud
• Operational Dashboards
• Support and Help
• General Web and Information
• Notifications and Alerts and more, serving as quick bookmarks for developers corresponding to the entity.

You can add links for an entity by using the metadata.links field in your Catalog YAML. Here is the list of fields required:

Field	Type	Description
url	String	Destination URL.
title	String	Display name for the link.
icon	String (Optional)	Icon name from SimpleIcons.

Here’s how you can add links in your catalog entity page:

1. Go to your Catalog, and select the entity you want to add links for.
2. Click on the Edit button and switch to the YAML view to edit the YAML.
3. Add a links reference in your entity YAML under the metadata field. You can refer to the Example YAML for the links reference.

Example YAML:

metadata:
  name: artist-lookup
  links:
    - url: https://example.com/user
      title: Example User
      icon: user
    - title: Prometheus
      url: https://example.com/prometheus
      icon: prometheus
    ...

Adding an Additional Info Card

You can add an Additional Info Card to display additional details about the catalog entity on the "Overview" page. You can populate this card using the catalog entity's YAML metadata for fields like apiVersion, kind, metadata, and spec, including additional values ingested.

Additional info in metadata

To add custom information beyond the default root fields, use the additionalInfo key under metadata. This supports adding key-value pairs, with the value sourced dynamically.

Example:

metadata:
  name: demo-catalog-datasource
  additionalInfo:
    onShoreTeamLead: Jane Doe
    offShoreTeamLead: Dan John

Using this card in Layout Editor

You can refer to the detailed demo linked here.

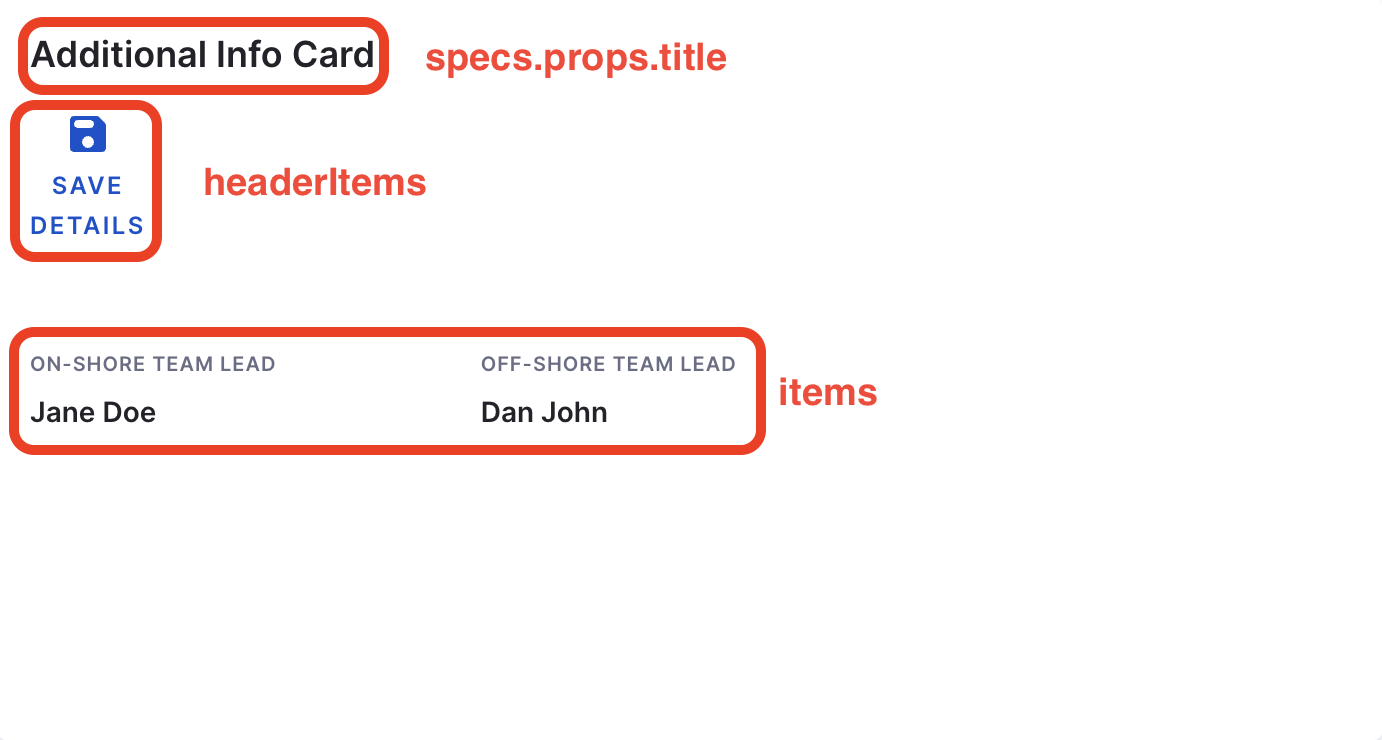

Here are the steps to add the Additional Info Card:

1. Go to the Layout Editor and choose the entity kind where you want to add the additional info card.
2. Add the EntityAdditionalInfoCard component as shown below:

- component: EntityAdditionalInfoCard
  specs:
    props:
      title: Additional Info Card
      headerItems:
        - icon: SaveRounded
          label: Save Details
          url: https://artifactregistry.com
      items:
        - label: On-Shore Team Lead
          value: <+metadata.additionalInfo.onShoreTeamLead>
          type: string
          style:
            bold: true
        - label: Off-Shore Team Lead
          value: <+metadata.additionalInfo.offShoreTeamLead>
          type: string
          style:
            bold: true
    gridProps:
      md: 6

All the fields mentioned here support sourcing data from the catalog-info.yaml file as strings.

items:

Contains information sourced from catalog-info.yaml:

• label: A string providing information about the value being displayed.
• value: The value to display against the added label, typically sourced from catalog-info.yaml.
• type: Defaults to string, but also supports link type.
• style: Used for text styling, as demonstrated in the example above.

headerItems (Optional):

Contains information to be displayed in the header section of the card:

• icon: Supports any Material icon.
• url: Adds a link to the Material icon.
• label: A string providing information about the icon.
